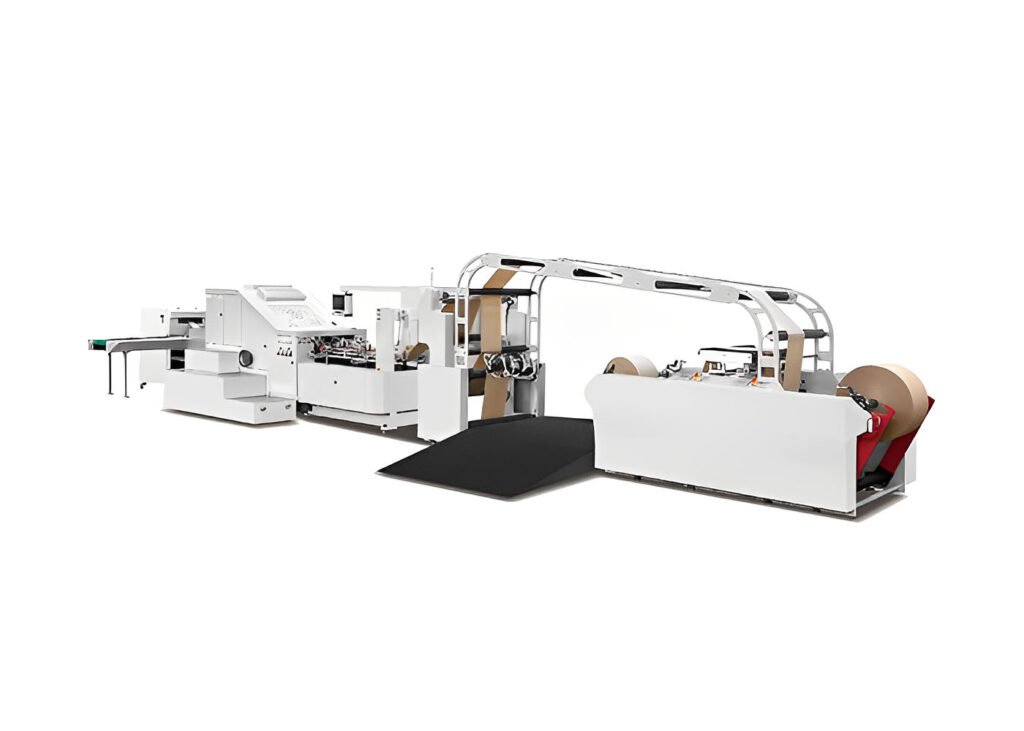

PG-330Y/450Y Fully Automatic Double-layer Paper Bag Making Machine
Model 330Y/450Y is a double-layer paper bag-making machine. The biggest advantage of double-layer paper bags is that they are strong and very suitable for packaging food without worrying about being damaged by oil stains and seasonings.
Technical Parameters
| Model | PFD-330Y | PFD-450Y |
| Bag length (L) | 270-530mm | 300-630mm |
| Bag width (W) | 120-330mm | 220-450mm |
| Bottom width (H) | 60-180mm | 100-200mm |
| Paper web width | 390-1050mm | 670-1370mm |
| Single layer paper weight | 60-150gsm | 80-150gsm |
| Double layer paper weight | Max. 200gsm | Max. 200gsm |
| Paper roll diameter | 1500mm | 1500mm |
| Roll core diameter | Ø76mm | Ø76mm |
| Design speed | 30-220bags/min | 30-150bags/min |
| Production speed | 30-180bags/mn | 30-120bags/mn |
| Footprint | 13200 x 3600 x 2400mm | 14800 x 3700 x 2200mm |
| Weight | 11000kg | 14000kg |
