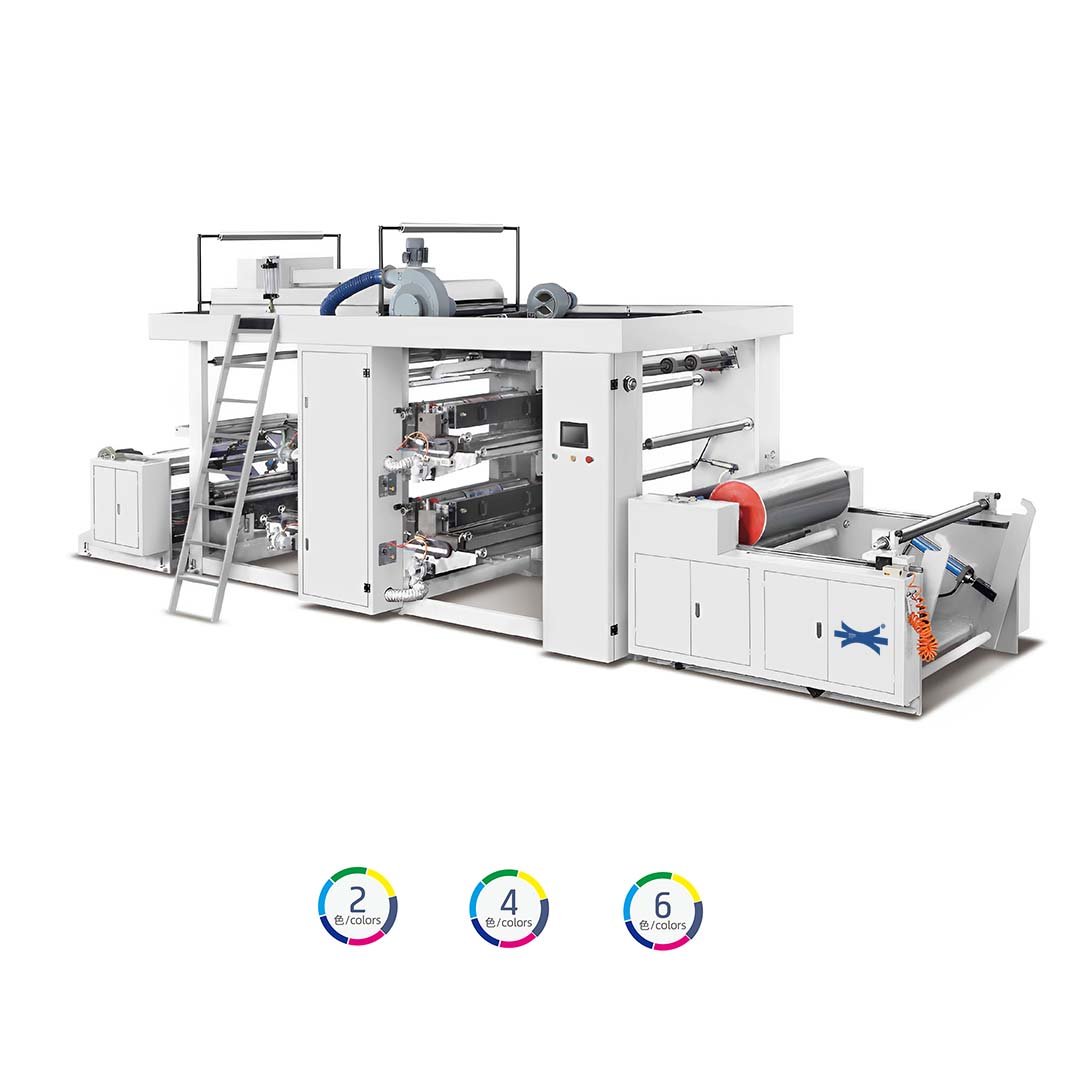

PYTS-M Multi-color flexographic printing machine
The M series composite model has the advantage of being able to add or reduce color groups as needed, but its disadvantage is that it occupies a large area.
- PLC and HMI control
- Capacity 5-100m/min
- Print Registration ≤ ±0.15mm
- Chamber Doctor Blade
- Ceramic Anilox Roll
- Ink Circulation Pump
- Back to Back Rewinding
Technical Parameters
| Model | PYTS- M8 | PYTS- M10 | PYTS- M12 | PYTS- M13 |
| Max printing material width | 800mm | 1000mm | 1200mm | 1300mm |
| Max printing width | 760mm | 960mm | 1160mm | 1260mm |
| Printing length | 228-1000mm | 228-1000mm | 228-1000mm | 228-1000mm |
| Printing speed | 5-100m/min | 5-100m/min | 5-100m/min | 5-100m/min |
| Registration precision | ≤ ±0.15mm | ≤ ±0.15mm | ≤ ±0.15mm | ≤ ±0.15mm |
| Plate thickness | 2.28mm | 2.28mm | 2.28mm | 2.28mm |
| Max unwinding diameter | 1500mm | 1500mm | 1500mm | 1500mm |
| Max rewinding diameter | 1500mm | 1500mm | 1500mm | 1500mm |
| Weight | 4200kg | 4400kg | 4900kg | 5500kg |
| Dimensions | 6600 x 1900 x 2500mm | 6400 x 2100 x 2500mm | 6400 x 2300 x 2500mm | 6600 x 2400 x 2500mm |
