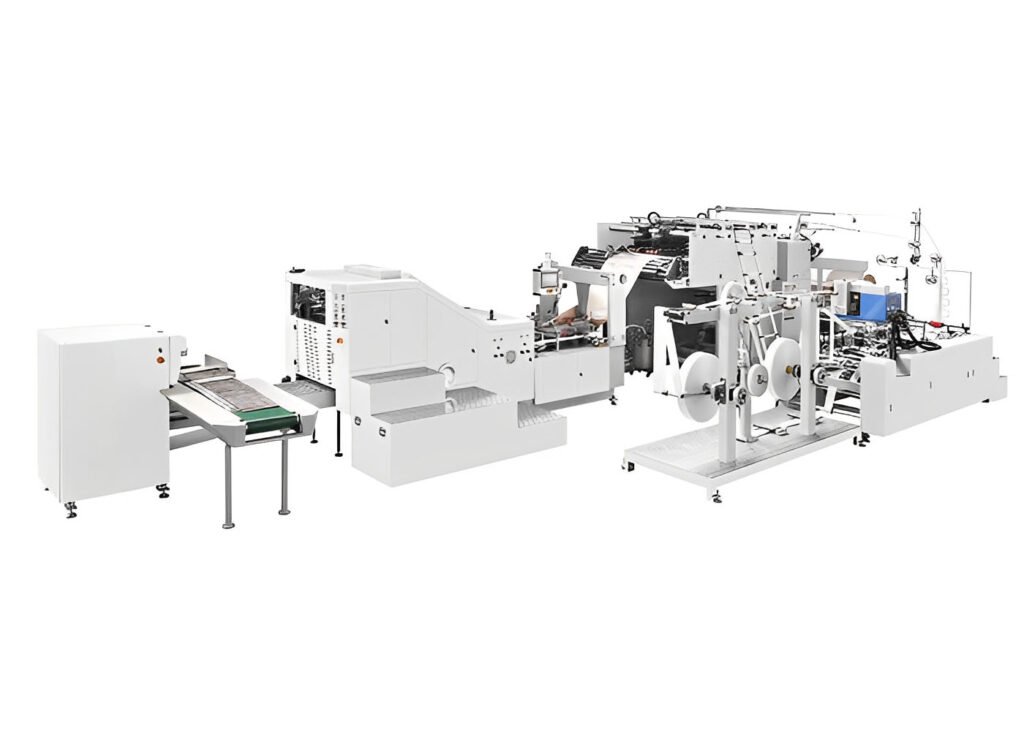

PFD-330F/450F Square Bottom Paper Bag Making Machine with Flat Handle
The PFD-330F/450F model is based on the basic model 330/450 and adds the flat handle production function, which can produce paper bags with flat handles.
Technical Parameters
| Model | PFD-330F | PFD-450FA | PFD-450FB |
| I. Bag Body Part | |||
| Cutting length | 270-530mm | 270-530mm | 380-760mm |
| Cutting length (With Handle) | 270-430mm | 270-430mm | 380-660mm |
| Bag width | 120-330mm | 200-450mm | 220-450mm |
| Bag width (With Handle) | 200-330mm | 260-450mm | 260-450mm |
| Bottom width | 60-180mm | 80-180mm | 80-200mm |
| Bottom width (With Handle) | 80-180mm | 100-180mm | 90-200mm |
| Paper web width | 380-1050mm | 590-1300mm | 620-1350mm |
| Paper web width (With Handle) | 620-1050mm | 710-1300mm | 710-1350mm |
| Paperweight | 60-150gsm | 70-150gsm | 80-150gsm |
| Paperweight (With Handle) | 80-150gsm | 80-150gsm | 80-150gsm |
| Paper roll diameter | 1300mm | 1300mm | 1300mm |
| II. Handle Part | |||
| Patch length | 152mm | 152/190mm | 152/190mm |
| Patch width | 45-50mm | 45-50mm | 45-50mm |
| Handle height | 90mm | 90mm | 90mm |
| Handle width | 45-50mm | 45-50mm | 45-50mm |
| Handle space | 78mm | 78/84mm | 78/84mm |
| Patch paper web width | 80-100mm | 80-100mm | 80-100mm |
| Patch paper web diameter | 1200mm | 1200mm | 1200mm |
| III. Machine General Specification | |||
| Design speed | 30-200bags/mn | 30-180bags/mn | 30-150bags/mn |
| Production speed (Without Handle) | 30-180bags/min | 30-150bags/min | 30-100bags/min |
| Production speed (With Handle) | 30-110bags/min | 30-90bags/min | 30-90bags/min |
| Footprint | 15000 x 6000 x 2700mm | ||
| Weight | 20T | 20T | 20T |
