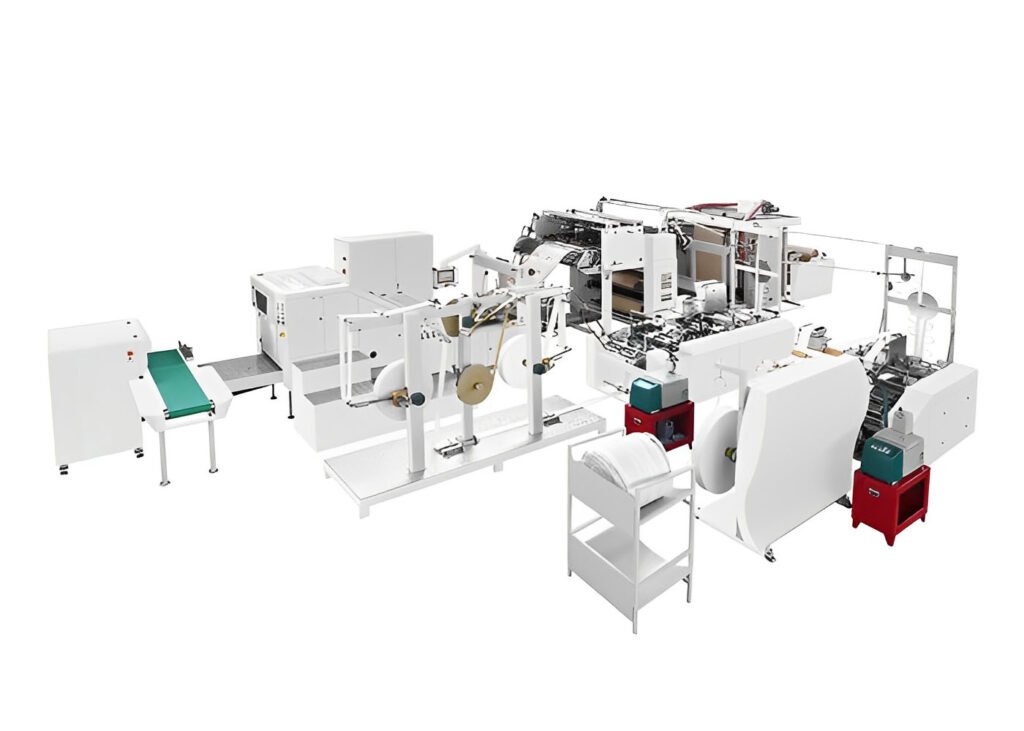

PFD-330TF/450TF Multi-function Handle Paper Bag Making Machine
PFD-330TF/450TF model handle paper bag machine adds two handle-making functions based on the basic model 330/450. It can produce paper bags with two different handles, namely flat handle paper bags and twist handle paper bags.
Technical Parameters
| Model | PFD-330TF | PFD-450TFA | PFD-450TFB |
| I. Bag Body Part | |||
| Cutting length | 270-530mm | 270-530mm | 380-760mm |
| Cutting length (With Handle) | 270-430mm | 270-430mm | 380-660mm |
| Bag width | 120-330mm | 200-450mm | 260-450mm |
| Bag width (With Handle) | 200-330mm | 260-450mm | 260-450mm |
| Bottom width | 60-180mm | 80-180mm | 80-200mm |
| Bottom width (With Handle) | 80-180mm | 100-180mm | 90-200mm |
| Paper web width | 380-1050mm | 590-1300mm | 620-1350mm |
| Paper web width (With Handle) | 620-1050mm | 710-1300mm | 710-1350mm |
| Paperweight | 60-150gsm | 80-150gsm | 80-150gsm |
| Paperweight (With Handle) | 80-150gsm | 80-150gsm | 80-150gsm |
| Paper roll diameter | 1300mm | 1300mm | 1300mm |
| II. Twisted Handle Part | |||
| Patch length | 152mm | 152/190mm | 152/190mm |
| Patch width | 45-50mm | 45-50mm | 45-50mm |
| Handle rope height | 100mm | 100mm | 100mm |
| Handle distance | 75mm | 95mm | 95mm |
| Rope diameter | Φ4-5mm | Φ4-5mm | Φ4-5mm |
| Patch paper web width | 90-100mm | 90-100mm | 90-100mm |
| Patch paper web diameter | 1200mm | 1200mm | 1200mm |
| III. Flat Handle Part | |||
| Handle height | 100mm | 100/80mm | 100/80mm |
| Handle width | 12/15mm | 12/15mm | 12/15mm |
| Handle paper web width | 45mm | 45mm | 45mm |
| Handle distance | 72mm | 72/85mm | 72/85mm |
| Patch length | 152mm | 152/190mm | 152/190mm |
| Patch width | 45-50mm | 45-50mm | 45-50mm |
| Patch paper web width | 90-100mm | 90-100mm | 90-100mm |
| Patch paper web diameter | 1200mm | 1200mm | 1200mm |
| IV. Machine General Specification | |||
| Design speed | 30-200bags/mn | 30-180bags/mn | 30-150bags/mn |
| Production speed (Without Handle) | 30-180bags/min | 30-150bags/min | 30-130bags/min |
| Production speed (With Handle) | 30-150bags/min | 30-130bags/min | 30-130bags/min |
| Footprint | 19000 x 6000 x 2700mm | ||
| Weight | 22T | 23T | 26T |
