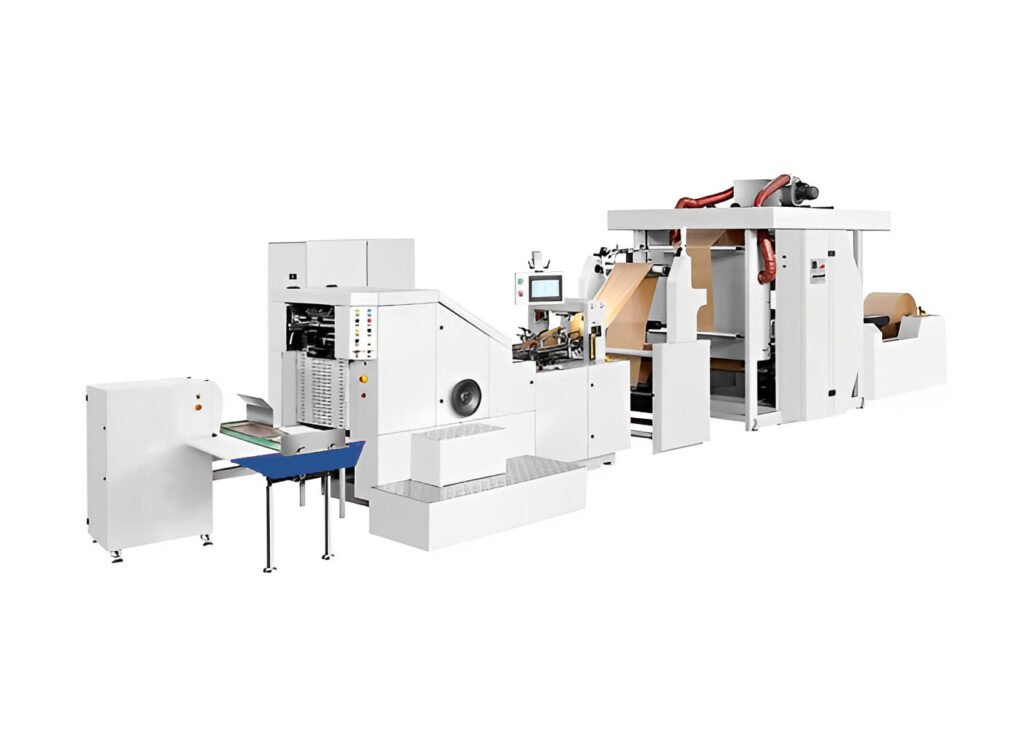

PFD-190-2/4/6C square bottom paper bag machine with printer
PFD-190-2/4/6C square bottom paper bag machine is a functional customized version of the 190 model. It adds an online printing kit based on the 190 model and can directly produce square bottom paper bags with 2-color, 4-color, or 6-color printing.
- Fast Changeover
- Inline Printing 2.4/6 Colors
- Conform with CE Certificate
- Auto Web Tension Control
Technical Parameters
| Model | PFD-190-2/4/6C |
| Tube length | 190-370mm |
| Bag width | 80-200mm |
| Bottom width | 50-105mm |
| Paper web width | 280-640mm |
| Paper weight | 45-130gsm |
| Paper roll diameter | 1500mm |
| Registration precision | ≤ ±0.15mm |
| Printing speed | 5-100m/min |
| Speed | 30-260bags/mn |
| Footprint | 12500 x 3200 x 2800mm |
