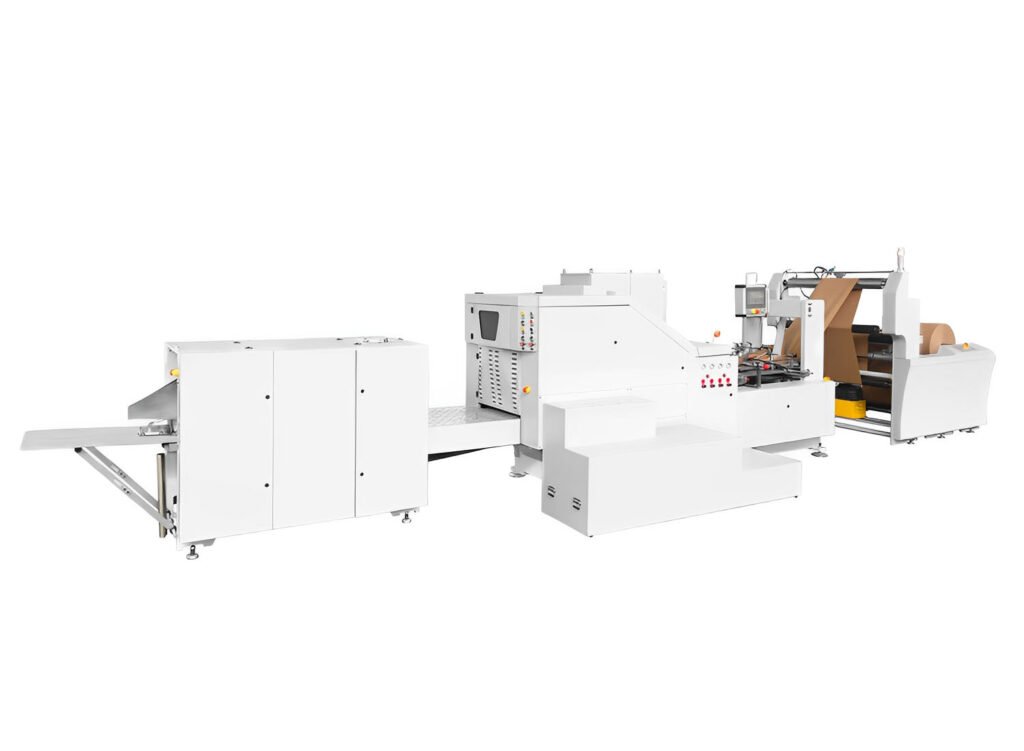

PFD-190/250 Small and Medium Square Bottom Paper Bag Making Machine
PFD-190/250 is a compact paper bag-making machine that adopts the roll-to-roll bag-making method. It has the characteristics of a fast bag-making speed and a small footprint. The fastest speed can reach 260 bags per minute. It is the best partner for small and medium-sized enterprises.
Options：
- Inline Printer
- Window Unit
- Strip Unit
Technical Parameters
| Model | PFD-190 | PFD-250 |
| Tube length (C) | 190-370mm | 240-470mm |
| Bag width (W) | 80-200mm | 110-250mm |
| Bottom width (H) | 50-105mm | 60-150mm |
| Paper web width | 280-640mm | 370-830 |
| Paper weight | 45-130gsm | 50-150gsm |
| Paper roll diameter | 1500mm | 1500mm |
| Speed | 30-260bags/mn | 30-260bags/mn |
| Footprint | 8500 x 3200 x 2000mm | 10000 x 3300 x 2000mm |
| Weight | 6200kg | 8500kg |
